Papanui

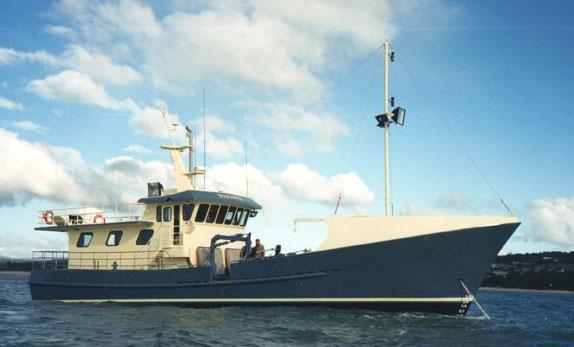

Papanui designed by Chris Williams
Vessel type                            Longliner
Length O.A.                           24.4m
Beam Moulded                        7m
Depth Midships                       3.2m
L.B.P.                                    22m
Draft laden                             2.93m
Construction Hull                    Steel
Construction Superstructure    Marine Aluminium
Fuel                                       21400 litres
Water for ice                          7300 litres
Domestic water                       4100 litres
Trim Water                             8000 litres
Brine Tanks                            17600 litres
Fish Room                              45 m^3
Ice Room                                9 m^3
Power                                    419 HP
Speed laden 160 tonnes           10.75 knots

This is a true rough water vessel able to set out and stay out safely in pretty bad weather. Construction is 6-8mm th steel hull with 4-5mm th marine aluminium (marine aluminum) deckhouse. The bow sections are very deep and steep and these vessels can be driven into steep seas at full speed without pounding, even when the bow is driven through into open air.

You would be very happy indeed with this well proven design for longlining, cray (lobster) fishing or as a small  trawler. A simple, economical, comfortable, safe, profitable vessel with excellent resale value as a Chris Williams design. Variations would make an excellent Expedition Yacht for World voyaging.
